A diff locker that won’t engage can be frustrating, especially when you need it most in off-road conditions.
Whether your vehicle is fitted with an air locker, electronic locker (E-Locker), or mechanical locker, there are several common reasons why a locker may not work.
Understanding the possible causes can help diagnose the issue and determine whether it’s a simple fix or something that requires professional inspection.
Start With the Basics
Before assuming there is a major issue inside the differential, it’s always worth checking the basic components first.
Many locker engagement issues are caused by external systems rather than the locker itself.
Things to check include:
- Locker switch operation
- Electrical power supply
- Air compressor operation (for air lockers)
- Wiring connections and plugs
Air Locker Not Engaging
Air lockers rely on compressed air to move an internal actuator that locks the differential.
Because of this, problems are often related to the air system rather than the differential itself.
Air Leaks
Air leaks are one of the most common issues with air locker systems.
Leaks may occur at:
- Airline fittings
- Solenoids
- Airline damage from heat or abrasion
- Seal housing components inside the differential
- Damaged airlines inside the diff

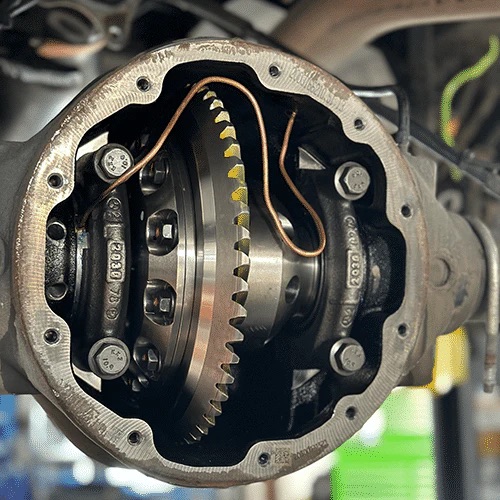

Even a small air leak can prevent the locker from building enough pressure to engage. It is important to make sure the internal copper airlines are routed correctly to make sure they are not touching any moving components.
Internal Seal Wear
Another issue that can occur with air lockers, particularly in vehicles that frequently cross water, is internal seal surface wear.
Air lockers use a seal housing assembly mounted to the differential bearing cap, which remains stationary while the differential carrier rotates inside it.
Compressed air passes through this seal housing and into the locker mechanism inside the carrier. To allow this while the carrier is rotating, the system relies on O-rings that seal against the machined surface of the diff carrier.
If a differential is regularly exposed to water contamination, the gear oil can become diluted and lose its ability to properly lubricate these sealing surfaces.
Over time this can cause wear on the area of the carrier where the O-rings run.
Because the seal housing remains stationary while the carrier rotates, the O-rings are constantly running on the same sealing surface, even when the locker is not engaged. If this surface becomes worn or develops grooves, the locker may develop an internal air leak inside the differential.
Damaged Airline
Airlines can sometimes be damaged if they are routed near:
- Exhaust components
- Sharp edges
- Suspension components
A melted or pinched airline will prevent the locker from receiving air pressure.
Compressor Issues
If the compressor supplying the locker fails to operate correctly, the locker will not engage.
Possible causes include:
- Blown fuse
- Faulty relay
- Electrical wiring problems
- Compressor motor failure
E-Locker Not Engaging
Electronic lockers rely on electrical power to activate an electromagnetic actuator inside the differential.
Common causes include:

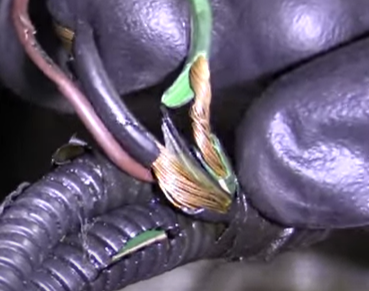

- Damaged wiring
- Loose or corroded connectors
- Poor earth connection
- Voltage drop from undersized wiring
- Faulty switch or relay
Mechanical Locker Issues
Mechanical lockers operate automatically and do not rely on external air or electrical systems.
If a mechanical locker appears not to be functioning correctly, possible causes include:
- Internal wear of locking components
- Incorrect installation
- Excessive drivetrain backlash
- Driving conditions where the locker is not loading correctly
When to Seek Professional Inspection
If basic checks do not identify the issue, the differential may need to be inspected internally.
This may involve checking locker engagement mechanisms, inspecting bearings and gears, and verifying the differential setup.
